Operator

Authentication

Humans sign in with a password, through the directory or through an OpenID Connect provider; builds and scripts always use an API token. This chapter is the human side: how a login is checked, where the accounts come from, and what keeps an operator from locking themselves out.

Authentication modes#

The mode is a setting (auth_mode), chosen in the Authentication section of /admin.html or with PUT /admin/auth-config (manage_auth_config). A fresh instance starts in Off unless INITIAL_AUTH_MODE names another mode for its first start (see Configuration); an existing instance keeps the mode it has.

"Administrators" are the holders of manage_auth_config: root, the admin role, and anyone given that permission, whether stored or conferred by a directory group. While only they may sign in, everyone else's login answers 403 with the reason, and sessions opened earlier stop working until the mode changes again.

PUT /admin/auth-config accepts off and maintenance as spellings of disabled; any other mode answers 400 Invalid auth mode: …. ldap without an ldap_config in the same request answers LDAP config required for ldap mode; oidc without an oidc_config stored or supplied answers OIDC config required for oidc mode; dev on a server without the gate answers dev mode needs the server started with ALLOW_INSECURE_DEV_MODE=true. A refused request changes nothing. Every change is an UPDATE_SETTINGS audit entry.

The sign-in page asks GET /auth/options (no sign-in needed) what to offer: the register tab, the SSO button, and a notice while only administrators can sign in.

Administrative routes (/admin/*) take a session token from POST /auth/login; an API token on them answers 401. The one exception is the backup download, which admits a full API token. A session lasts 7 days.

Off: maintenance#

Off is for the times nobody but the operators should touch the instance: a database backup or restore, a migration, rebuilding the directory groups. Builds must not provide against an instance that is about to be restored, and people must not change data that is about to be wiped. In Off:

• Provide, require, catalog, the reports and the MCP endpoint answer 503 Service is in Maintenance Mode / Disabled, for every caller, administrators included.
• Only administrators sign in. Everyone else gets 403 Sanshain is in maintenance; only administrators can sign in, and the sign-in page shows the same notice. A session someone else opened before Off stops working.
• Nobody registers.

Off remembers the mode it interrupted. Switching from LDAP to Off keeps LDAP as the sign-in source: administrators whose rights come from a directory group sign in with their directory password as usual, and their group still confers the rights while Off lasts. The same holds for OIDC through the SSO button. Local passwords work throughout, so root is always the way in, also when the directory is the thing under maintenance and does not answer. A fresh instance has no previous mode: there only local passwords work, which on day one means the initial admin.

A typical window, backing up the database and rebuilding the directory groups:

1. An administrator selects Off (maintenance) and saves. From now on CI provides get 503 and retry later; people see the maintenance notice.
2. Take the backup (Backup and restore). The administrator stays signed in; a second one can sign in through LDAP at any time.
3. Rebuild the groups in the directory. If the directory is down meanwhile, sign in as root with its local password.
4. Select LDAP again and save. The API answers again, and people sign in as before; the groups they are in now decide their rights.

Local accounts#

In Local mode, the admin page shows two switches below the mode (manage_settings):

• Registration (registration_enabled, off by default): anyone can create an account on the Register tab of the sign-in page or with POST /auth/register ({"username","password"}). Closed, the tab is not shown and the call answers 403 registration is closed on this instance. Closing it keeps every account it created; deleting accounts is a separate, deliberate action. An instance updated from 2.9 or earlier starts with it closed.
• Auto-acknowledge new users (auto_approve_users, off by default): a new account can sign in at once. Off, it is pending until an administrator approves it (approval): the Users section of the admin page, or POST /admin/users/{id}/approve (manage_users). The register tab and the answer of POST /auth/register ({"approved": true|false}) say which applies, so nobody is told to wait who does not have to.

A pending user's login answers 403; a wrong password 401, and so does an empty one, refused before any check. In the Users list every account carries its badges: one per role it holds directly (admin, viewer, …), and approved or pending.

Registration refuses a name twice: 409 User already exists, and 409 This username is reserved for every name in SANSHAIN_ROOT_USERS that has no account yet (startup creates a locked one, see Root users). Deleting a user (DELETE /admin/users/{id}) revokes their sessions and API tokens. Users change their own password on /account.html; there is no administrative password reset.

The Users section shows only the accounts waiting for approval, with a count of the others. To find the rest, search by username or display name, or pick chips: kind (service account, local, LDAP, OIDC, unknown), status (pending, approved) and role. Chips of different kinds narrow the list together; two chips of the same kind widen it ("LDAP, and admin or maintainer").

Every row of the Users section carries a tag for the kind of account: service account, or how the person last signed in, local, LDAP or OIDC. A user who has not signed in since 2.11 shows unknown until their next sign-in.

People are shown by their display name, with the username beside it, in the user list, the groups and maintainers, the token For choice, the audit log and the header. LDAP users get it from displayName and OIDC users from the name claim, refreshed at every sign-in (and cleared when the provider no longer sends one) and not editable in Sanshain. Local users set their own on the account page (PUT /auth/display-name); a service account's is set with Name in its row (PUT /admin/users/{id}/display-name, manage_users). Without one, the username is shown.

Next to the name sits a circle with the person's initials. The Gravatar pictures switch above the user list (POST /admin/settings/gravatar, manage_settings, off by default) puts their picture from gravatar.com over it. The key is the SHA-256 of the e-mail address the directory (mail) or the OIDC provider (email) gave at the last sign-in, and none when it gave none; Sanshain stores only that key, never the address, and nothing is requested from gravatar.com while the switch is off. Someone without a picture keeps their initials.

While the switch is on, everyone can pick their own picture address in Picture on the account page (PUT /auth/gravatar, {"email": "…"}; blank removes it). It wins over the provider's address and no sign-in overwrites it; a local user gets a picture only this way. Here too only the key is stored, so the field empties after saving and the page says that the address is set, not which one.

Service accounts#

Automation gets a service account: New service account in the Users section of the admin page, or POST /admin/users with {"username":"jenkins"} (manage_users), in any mode. It is approved at once and has no password: it never signs in, not by password, not through the directory, not through the provider. Its API tokens are issued by holders of manage_users on their own /account.html, choosing it under For (POST /auth/tokens with "for_user":"jenkins"); a token cannot be issued for a person this way. Every holder of manage_users sees all service-account tokens in their list, marked For jenkins · issued by alice, and may revoke any of them. The account's rights are the roles granted to it, like any user's; the audit log records the issue as CREATE_TOKEN naming the account, and every call made with the token as the account. The name follows the rules of registration: taken names and root names are refused (409), and it may not contain spaces (400).

The initial admin and root#

On the first start, with no user in the database, Sanshain creates INITIAL_ADMIN_USERNAME (root) with INITIAL_ADMIN_PASSWORD or a random password, grants it the admin role and prints both lines to stderr:

[INITIAL SETUP] Admin user created. Username: root, Password: <random>
[INITIAL SETUP] Change this password immediately at https://sanshain.corp/admin.html

The second line names the admin page under PUBLIC_BASE_URL; without it, under the bind address (http://0.0.0.0:3000/admin.html by default). A set but empty INITIAL_ADMIN_PASSWORD counts as unset, and an empty password is never accepted at login.

That account is also root by the default of SANSHAIN_ROOT_USERS: every permission, including ones no role grants, from configuration rather than from the database. Name a second account there as the break-glass path; the full rules are in Configuration.

LDAP and Active Directory#

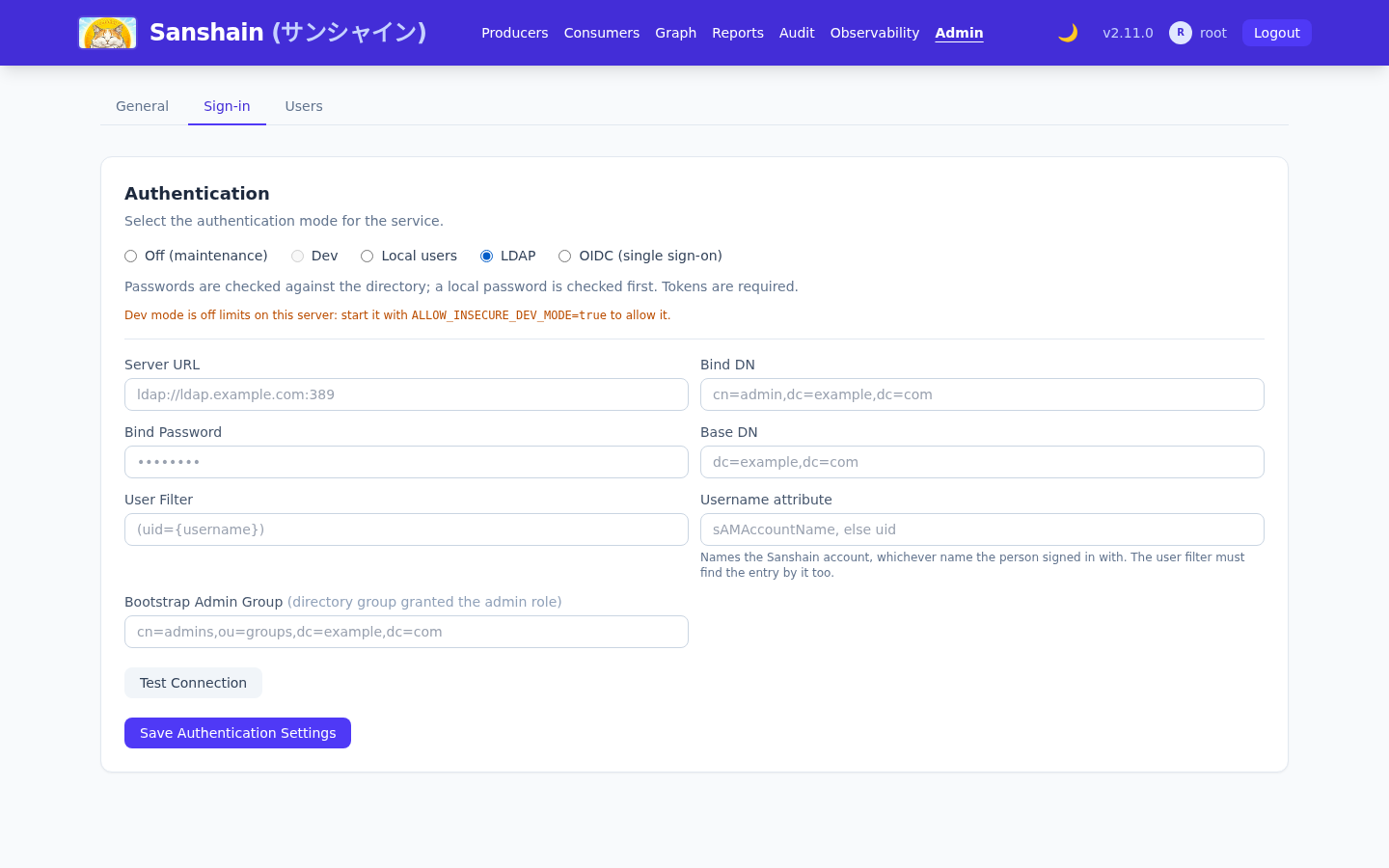

Select LDAP in the Authentication section and fill the form:

Test Connection (POST /admin/auth-config/test with the form's fields) connects and binds with the service account; Save Authentication Settings applies. The same through the API:

curl -X PUT $SANSHAIN/admin/auth-config \
  -H "Authorization: Bearer $SESSION" -H "Content-Type: application/json" \
  -d '{
    "auth_mode": "ldap",
    "ldap_config": {
      "server_url": "ldaps://ldap.example.com:636",
      "bind_dn": "cn=readonly,dc=example,dc=com",
      "bind_password": "secret",
      "base_dn": "dc=example,dc=com",
      "user_filter": "(uid={username})",
      "username_attribute": "",
      "admin_group": "cn=admins,ou=groups,dc=example,dc=com",
      "use_tls": false
    }
  }'

GET /admin/auth-config returns the mode and the configuration with the password redacted.

How a login is checked#

The local password comes first. When a local account of that name exists and the password matches it, the user is signed in and the directory is never asked. A user whose local and directory accounts share a name but not a password therefore cannot lock their directory account by typing the local one: only a password that is wrong locally reaches the directory, where every failed bind counts towards the lockout policy. Otherwise the directory checks it:

1. Name resolution and a TCP connection to the host and port, with a 5 s limit. A failure here means the directory was never reached; the message says which step failed and where to look, for example Could not connect to LDAP server at …: this container has no route to 10.1.2.3: check the network, VPN or Docker network of the pod. See When the directory is unreachable.
2. The TLS or StartTLS handshake and the service-account bind, each under the operation timeout (10 s, LDAP_OPERATION_TIMEOUT_SECS).
3. A subtree search under the Base DN with the User Filter, reading dn and memberOf.
4. A second connection binding as the found DN with the given password.
5. On success a shadow account with that username is created in the local database (approved, random local password), so sessions, favourites and API tokens work as for a local user. No group or role is captured at login.

What the user may do is decided on every authorisation check: their memberOf groups are read through the service account, cached for SANSHAIN_DIRECTORY_GROUP_TTL_SECS (300), and matched against the directory groups in the group mapping; the roles attached to matching groups apply. A promotion or demotion in the directory takes effect within the cache TTL, without a new login. When the directory is unreachable, directory roles are omitted (see Directory group caching). Because the local check comes first, root and local accounts are never locked out by the directory, whether it refuses or is down.

One account per person#

At every LDAP sign-in Sanshain also reads the entry's immutable ID, objectGUID in Active Directory or entryUUID in OpenLDAP, and keeps it with the account. The accounts that belong to the same entry are folded into one: the one found by that ID, the one named by the username attribute, the one named as typed and the one named by the entry's mail. Roles, group memberships, maintainerships, favourites, API tokens and sessions move to the account that carries the username; the audit log records each merge (MERGE_USER). So two accounts created before 2.11, one by the short name and one by the e-mail address, become one the next time the person signs in. When the directory renames the person (axel becomes axel.dumb), the ID still matches, and the account is renamed (RENAME_USER) instead of a new one being made. Accounts named in SANSHAIN_ROOT_USERS are never renamed or merged, and service accounts never take part.

Timeouts, schemes and ports#

The connect timeout cannot help once the port answers. A scheme and port mismatch, or a firewall that accepts and then drops, used to hang the request until the ingress gave up with 502 Bad Gateway. Since 2.6.0 every exchange after the connect runs under the operation timeout. Test Connection answers 400 with:

LDAP connection failed: Connection failed: LDAP server at ldaps://ldap.example.com:389 accepted the connection but did not respond within 10 s. Check that ldaps:// uses the TLS port and StartTLS the plain one.

Only Test Connection shows the text. A login that hits the same stall is treated like any directory refusal: the local password check runs and the caller gets a bare 401.

When the directory is unreachable#

Since 2.8.0 a failure before the connection is up is explained in plain words, with the kernel's own text in brackets where it adds something: the name did not resolve, there is no route from this container, the network is unreachable, the port refused, or nothing answered within 5 s. Test Connection then appends a network diagnosis gathered inside the container, one line each, under the message and in the diagnostics array of the 400 body:

LDAP connection failed: Could not connect to LDAP server at ldaps://ldap.example.com:636: this container has no route to 10.1.2.3: check the network, VPN or Docker network of the pod

DNS: ldap.example.com resolves to 10.1.2.3, fd00::1 (1.2 ms)
Resolvers: 10.96.0.10 (search default.svc.cluster.local, svc.cluster.local, cluster.local)
10.1.2.3: ping no route; route no route from this container; tcp/636 no route
fd00::1: ping answered in 0.4 ms; route via local address fd00::2; tcp/636 refused

• DNS: every address the name resolves to, with the lookup time. A dual-stack directory shows two addresses; a stray IPv6 record shows up here.
• Resolvers: the nameserver and search entries of the container's /etc/resolv.conf.
• One line per address: an ICMP echo (ping), the kernel's route lookup (route, the local address it would send from, or no route from this container), and a TCP connect to the port (tcp/636: accepted, refused, no route, or no answer within 2 s). The three together tell "host down" from "host up, port closed" from "no way there at all".

The echo uses an unprivileged ICMP socket. Docker allows those by default; on Kubernetes the line reads ping not permitted in this container (net.ipv4.ping_group_range) unless the pod sets that sysctl, and the route and TCP lines still answer. Each probe is bounded by 2 s and the whole diagnosis by 5 s. Failures after the connection is up (TLS, a stall, the bind) carry no diagnosis: the network was proven at that point. TLS failures are explained the same way, for example the server certificate is not trusted: its CA is not in the trust store; mount the CA with EXTRA_CA_CERTS_DIR (…).

Keep the ingress timeout above the operation timeout so Sanshain's message, not the proxy's, reaches the admin page.

Certificates#

ldaps:// and StartTLS verify the directory's certificate. The image trusts the public authorities; a private or corporate CA is mounted and named by EXTRA_CA_CERTS_DIR, see Additional CA certificates. Without it, Test Connection fails on certificate verification.

OpenID Connect#

OIDC is for people. Select OIDC (single sign-on) in the Authentication section and fill the form with the fields below, or send them with the API:

curl -X PUT $SANSHAIN/admin/auth-config \
  -H "Authorization: Bearer $SESSION" -H "Content-Type: application/json" \
  -d '{
    "auth_mode": "oidc",
    "oidc_config": {
      "issuer_url": "https://login.example.com/realms/corp",
      "client_id": "sanshain",
      "client_secret": "…",
      "redirect_url": "https://sanshain.corp/auth/oidc/callback",
      "username_claim": "preferred_username",
      "groups_claim": "groups",
      "admin_group": "sanshain-admins"
    }
  }'

The sign-in page shows Sign in with SSO (GET /auth/oidc/login) while OIDC is the sign-in source, which includes an Off that interrupted OIDC; otherwise the button is hidden and both routes answer 403 single sign-on is not the sign-in source of this instance. The flow is authorization code with PKCE: state, nonce and verifier travel in a 10-minute HttpOnly cookie; the callback (GET /auth/oidc/callback) exchanges the code, verifies the ID token (signature against the provider's JWKS, nonce, issuer, audience, expiry), creates or finds the shadow account (approved) and sets the session cookie, then redirects to the dashboard (/), where a local sign-in lands too. Without a configuration both routes answer 400 OIDC is not configured; a callback without its cookie answers 400 no OIDC login in progress; a provider that cannot be reached at discovery answers 500 OIDC discovery failed: …, and a key set served over plain http answers 500 OIDC discovery failed: Url must use TLS: '…'.

Developer mode#

Developer mode is for a trial on a laptop: provide, require, catalog and the MCP endpoint take requests without a token and act as a built-in dev_user, a service account with the admin role that never signs in (one created before 2.10 had a fixed password and is locked on startup). The admin pages do not: they need a signed-in administrator, and only administrators sign in. It needs two things at once:

1. The mode: Dev, picked on the admin page or with INITIAL_AUTH_MODE=dev on a fresh instance.
2. The gate: ALLOW_INSECURE_DEV_MODE=true in the environment.

Without the gate the Dev option on the admin page is greyed out with a hint, and PUT /admin/auth-config refuses it. A stored Dev mode on a server without the gate is switched to Local on startup, which is what such an instance did all along (Dev could be picked without the gate before 2.10).

SANSHAIN_DEV_MODE no longer does anything. Before 2.10 it opened the API whatever the sign-in mode was; a server that still sets it logs that it is ignored.

With both, startup logs SECURITY WARNING: dev_mode is ENABLED - API endpoints accept unauthenticated requests. Disable it in production. The gate belongs on a laptop and nowhere else; a persisted setting left behind by configuration drift cannot open a production instance on its own.

Checked against v2.10.0.
