An operator's story

1. The Helm install#

The operator installs the chart from the repository with PostgreSQL, an ingress and the backup CronJob switched on. Below is helm template with those values: the objects helm install would create. It was not applied to a cluster.

# Not recorded against a cluster: this is what the chart renders for these values
$ helm template sanshain deploy/helm/sanshain --set secrets.databaseUrl=postgres://sanshain:secret@postgres.sanshain.svc:5432/sanshain --set secrets.initialAdminPassword=walkthrough-admin --set ingress.enabled=true --set 'ingress.hosts[0].host=sanshain.corp' --set 'ingress.hosts[0].paths[0].path=/' --set 'ingress.hosts[0].paths[0].pathType=Prefix' --set backup.enabled=true --set backup.engine=postgres
---
# Source: sanshain/templates/serviceaccount.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: sanshain
  labels:
    helm.sh/chart: sanshain-2.6.1
    app.kubernetes.io/name: sanshain
    app.kubernetes.io/instance: sanshain
    app.kubernetes.io/version: "2.6.1"
    app.kubernetes.io/managed-by: Helm
---
# Source: sanshain/templates/secret.yaml
apiVersion: v1
kind: Secret
metadata:
  name: sanshain-secrets
  labels:
    helm.sh/chart: sanshain-2.6.1
    app.kubernetes.io/name: sanshain
    app.kubernetes.io/instance: sanshain
    app.kubernetes.io/version: "2.6.1"
    app.kubernetes.io/managed-by: Helm
type: Opaque
data:
  DATABASE_URL: "cG9zdGdyZXM6Ly9zYW5zaGFpbjpzZWNyZXRAcG9zdGdyZXMuc2Fuc2hhaW4uc3ZjOjU0MzIvc2Fuc2hhaW4="
  INITIAL_ADMIN_PASSWORD: "d2Fsa3Rocm91Z2gtYWRtaW4="
---
# Source: sanshain/templates/configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: sanshain-config
  labels:
    helm.sh/chart: sanshain-2.6.1
    app.kubernetes.io/name: sanshain
    app.kubernetes.io/instance: sanshain
    app.kubernetes.io/version: "2.6.1"
    app.kubernetes.io/managed-by: Helm
data:
  BIND_ADDRESS: "0.0.0.0:3000"
  RUST_LOG: "info,sanshain_service=debug"
  MAX_POSTGRES_CONNECTIONS: "20"
  MAX_SQLITE_CONNECTIONS: "5"
  SQLITE_BUSY_TIMEOUT_MS: "5000"
  CLEANUP_INTERVAL_SECS: "3600"
  CSRF_MAX_AGE_HOURS: "24"
  LOG_BUFFER_SIZE: "100"
  SPEC_UPDATED_CHANNEL_SIZE: "100"
  CAPTURE_LOG_FILTER: "sanshain_service=debug,tower_http=debug"
  STATIC_DIR: "static"
  INITIAL_ADMIN_USERNAME: "root"
---
# Source: sanshain/templates/backup-pvc.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: sanshain-backup
  labels:
    helm.sh/chart: sanshain-2.6.1
    app.kubernetes.io/name: sanshain
    app.kubernetes.io/instance: sanshain
    app.kubernetes.io/version: "2.6.1"
    app.kubernetes.io/managed-by: Helm
spec:
  accessModes:
    - "ReadWriteOnce"
  resources:
    requests:
      storage: "5Gi"
---
# Source: sanshain/templates/pvc.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: sanshain-data
  labels:
    helm.sh/chart: sanshain-2.6.1
    app.kubernetes.io/name: sanshain
    app.kubernetes.io/instance: sanshain
    app.kubernetes.io/version: "2.6.1"
    app.kubernetes.io/managed-by: Helm
spec:
  accessModes:
    - "ReadWriteOnce"
  resources:
    requests:
      storage: "1Gi"
---
# Source: sanshain/templates/service.yaml
apiVersion: v1
kind: Service
metadata:
  name: sanshain
  labels:
    helm.sh/chart: sanshain-2.6.1
    app.kubernetes.io/name: sanshain
    app.kubernetes.io/instance: sanshain
    app.kubernetes.io/version: "2.6.1"
    app.kubernetes.io/managed-by: Helm
spec:
  type: ClusterIP
  ports:
    - port: 80
      targetPort: 3000
      protocol: TCP
      name: http
  selector:
    app.kubernetes.io/name: sanshain
    app.kubernetes.io/instance: sanshain
---
# Source: sanshain/templates/deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: sanshain
  labels:
    helm.sh/chart: sanshain-2.6.1
    app.kubernetes.io/name: sanshain
    app.kubernetes.io/instance: sanshain
    app.kubernetes.io/version: "2.6.1"
    app.kubernetes.io/managed-by: Helm
spec:
  replicas: 1
  selector:
    matchLabels:
      app.kubernetes.io/name: sanshain
      app.kubernetes.io/instance: sanshain
  template:
    metadata:
      labels:
        app.kubernetes.io/name: sanshain
        app.kubernetes.io/instance: sanshain
    spec:
      serviceAccountName: sanshain
      securityContext:
        fsGroup: 1000
      containers:
        - name: sanshain
          securityContext:
            runAsNonRoot: true
            runAsUser: 1000
          image: "ghcr.io/paxel/sanshain-service:v2.6.1"
          imagePullPolicy: IfNotPresent
          ports:
            - name: http
              containerPort: 3000
              protocol: TCP
          envFrom:
            - configMapRef:
                name: sanshain-config
            - secretRef:
                name: sanshain-secrets
          livenessProbe:
            httpGet:
              path: /health
              port: http
            initialDelaySeconds: 5
            periodSeconds: 10
          readinessProbe:
            httpGet:
              path: /health
              port: http
            initialDelaySeconds: 5
            periodSeconds: 10
          resources:
            limits:
              cpu: 500m
              memory: 512Mi
            requests:
              cpu: 100m
              memory: 128Mi
          volumeMounts:
            - name: data
              mountPath: /data
      volumes:
        - name: data
          persistentVolumeClaim:
            claimName: sanshain-data
---
# Source: sanshain/templates/backup-cronjob.yaml
apiVersion: batch/v1
kind: CronJob
metadata:
  name: sanshain-backup
  labels:
    helm.sh/chart: sanshain-2.6.1
    app.kubernetes.io/name: sanshain
    app.kubernetes.io/instance: sanshain
    app.kubernetes.io/version: "2.6.1"
    app.kubernetes.io/managed-by: Helm
spec:
  schedule: "0 2 * * *"
  concurrencyPolicy: Forbid
  successfulJobsHistoryLimit: 3
  failedJobsHistoryLimit: 3
  jobTemplate:
    spec:
      template:
        metadata:
          labels:
            app.kubernetes.io/name: sanshain
            app.kubernetes.io/instance: sanshain
            app.kubernetes.io/component: backup
        spec:
          restartPolicy: OnFailure
          securityContext:
            fsGroup: 1000
          containers:
            - name: backup
              securityContext:
                runAsNonRoot: true
                runAsUser: 1000
              env:
                - name: RETAIN
                  value: "7"
                - name: DATABASE_URL
                  valueFrom:
                    secretKeyRef:
                      name: sanshain-secrets
                      key: DATABASE_URL
              image: "postgres:17-alpine"
              command: ["/bin/sh", "-ec"]
              args:
                - |
                  rm -f /backup/*.part
                  out="/backup/sanshain-$(date -u +%Y%m%dT%H%M%SZ).dump"
                  pg_dump --format=custom --file="$out.part" "$DATABASE_URL"
                  mv "$out.part" "$out"
                  ls -1t /backup/*.dump | tail -n +$((RETAIN + 1)) | xargs -r rm -f
                  ls -l /backup
              volumeMounts:
                - name: backup
                  mountPath: /backup
          volumes:
            - name: backup
              persistentVolumeClaim:
                claimName: sanshain-backup
---
# Source: sanshain/templates/ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: sanshain
  labels:
    helm.sh/chart: sanshain-2.6.1
    app.kubernetes.io/name: sanshain
    app.kubernetes.io/instance: sanshain
    app.kubernetes.io/version: "2.6.1"
    app.kubernetes.io/managed-by: Helm
spec:
  rules:
    - host: "sanshain.corp"
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: sanshain
                port:
                  number: 80

What to notice

• DATABASE_URL and the initial admin password live in the Secret, everything else in the ConfigMap.
• Two PersistentVolumeClaims: sanshain-data (the chart's default persistence, which an external PostgreSQL does not need: persistence.createPvc=false drops it) and sanshain-backup for the CronJob. With the postgres:// URL the CronJob runs pg_dump; with SQLite it would download the snapshot of step 8.
• Both probes, liveness and readiness, are GET /health.
• secrets.initialAdminPassword is walkthrough-admin here, the throwaway value the recording instance was started with, so step 2 logs in with it.

Go deeper

Deployment: the Helm chart · Deployment: SQLite or PostgreSQL · Backup: the Helm CronJob · Configuration: environment variables

2. The first login and the admin password#

On its first start the service creates the initial admin and prints the password to the log; here it is the throwaway value the Secret of step 1 carries, the one the recording instance was started with. The operator logs in, changes it, and finds that the session from before the change is gone.

The service log at first start

[INITIAL SETUP] Admin user created. Username: root, Password: walkthrough-admin
[INITIAL SETUP] Change this password immediately at https://sanshain.corp/admin.html

The second line names the admin page under PUBLIC_BASE_URL, which the recording instance was started with (https://sanshain.corp, the ingress host of step 1); without it, the bind address.

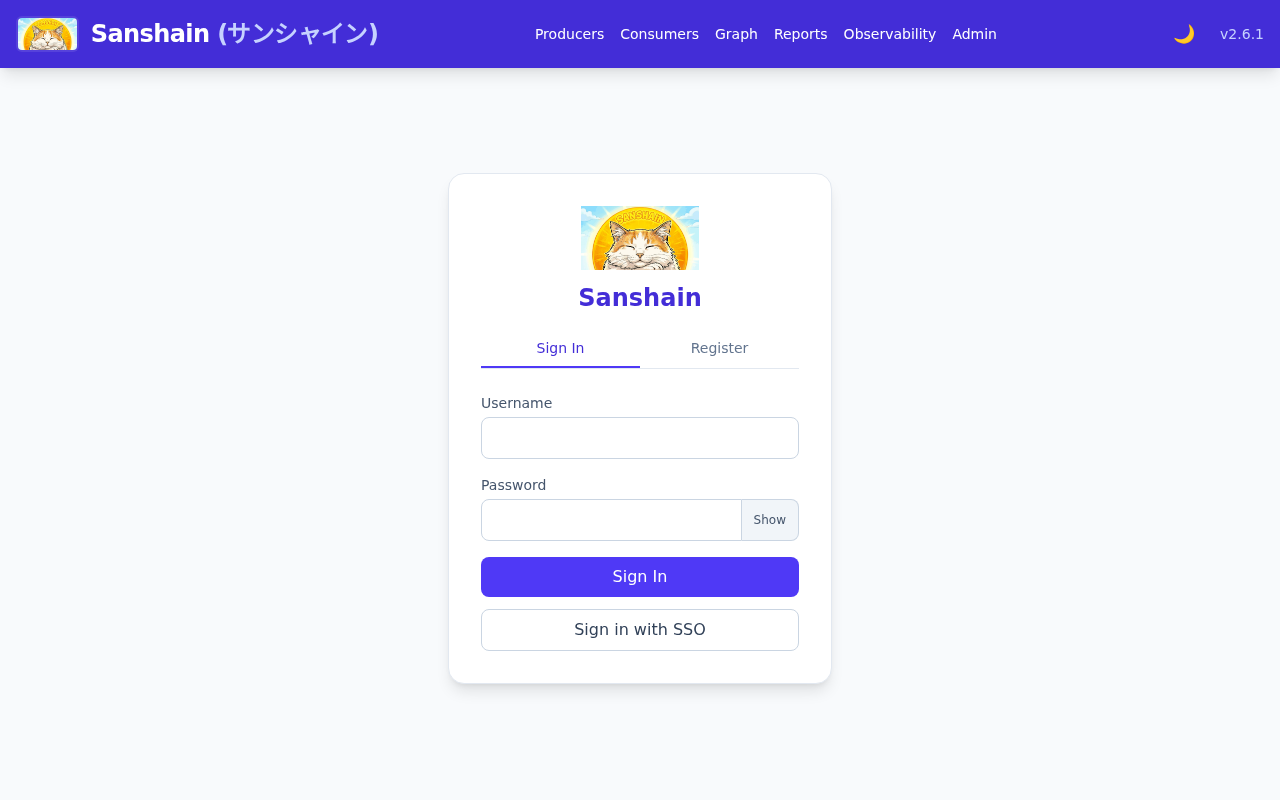

Login

POST /auth/login HTTP/1.1
Content-Type: application/json

{
  "username": "root",
  "password": "walkthrough-admin"
}

HTTP/1.1 200 OK
content-type: application/json
content-length: 76

{
  "token": "<session token>"
}

Change the password

POST /auth/change-password HTTP/1.1
Authorization: Bearer <session token>
Content-Type: application/json

{
  "old_password": "walkthrough-admin",
  "new_password": "walkthrough-admin-2026"
}

HTTP/1.1 200 OK
content-type: application/json
content-length: 76

{
  "token": "<session token>"
}

The old session afterwards

GET /auth/me HTTP/1.1
Authorization: Bearer <session token>

HTTP/1.1 401 Unauthorized
content-length: 0

What to notice

• The password change answers a fresh session token and ends every other session of the account: a script that administers logs in again.
• root is held by configuration (SANSHAIN_ROOT_USERS, or the initial admin's name); its authority cannot be revoked from inside the application.

Go deeper

Authentication: the initial admin and root · Getting started: first login · Using the API: sessions and API tokens

3. OpenID Connect, configured#

People sign in through the company's identity provider. OIDC is configured through the API (the admin page has no OIDC form in 2.6.0): one PUT with the provider's values, then a GET to see what is stored. No provider was reachable during the recording, so this is the configuration only; the login itself is described in the chapter.

Configure

PUT /admin/auth-config HTTP/1.1
Authorization: Bearer <session token>
Content-Type: application/json

{
  "auth_mode": "oidc",
  "oidc_config": {
    "issuer_url": "https://login.acme.corp/realms/corp",
    "client_id": "sanshain",
    "client_secret": "oidc-client-secret-from-the-provider",
    "redirect_url": "https://sanshain.corp/auth/oidc/callback",
    "username_claim": "preferred_username",
    "groups_claim": "groups",
    "admin_group": "sanshain-admins"
  }
}

HTTP/1.1 200 OK
content-length: 0

The stored state

GET /admin/auth-config HTTP/1.1
Authorization: Bearer <session token>

HTTP/1.1 200 OK
content-type: application/json
content-length: 342

{
  "auth_mode": "oidc",
  "ldap_config": null,
  "oidc_config": {
    "admin_group": "sanshain-admins",
    "client_id": "sanshain",
    "client_secret": "****",
    "groups_claim": "groups",
    "issuer_url": "https://login.acme.corp/realms/corp",
    "redirect_url": "https://sanshain.corp/auth/oidc/callback",
    "scopes": [
      "openid",
      "email",
      "profile"
    ],
    "username_claim": "preferred_username"
  }
}

Back to local accounts, for the rest of this story

PUT /admin/auth-config HTTP/1.1
Authorization: Bearer <session token>
Content-Type: application/json

{
  "auth_mode": "local"
}

HTTP/1.1 200 OK
content-length: 0

In oidc mode nobody can register a local account, and step 4 registers one. The mode goes back to local; the OIDC values stay stored, which is why the sign-in form of step 2 still offers Sign in with SSO, and the audit log of step 9 shows both changes.

What to notice

• The client secret is answered as ****; sending **** back keeps the stored one, so a later edit cannot lose it.
• scopes got its default; admin_group grants the admin role to bearers of that claim value at login, and only grants.
• The redirect URL's origin is also the fallback for PUBLIC_BASE_URL, the base of the webhook deep links in step 6.

Go deeper

Authentication: OpenID Connect · Authentication: modes · PUT /admin/auth-config

4. A user, a role, a maintainer scope, and the effect#

Maria registers herself, which an administrator has to approve. She gets the releaser role (she may publish GA and cut branches) and becomes a maintainer of payments (she may delete its versions and manage its hooks). Then she logs in and asks what she may do.

Registration

POST /auth/register HTTP/1.1
Content-Type: application/json

{
  "username": "maria",
  "password": "maria-walkthrough"
}

HTTP/1.1 201 Created
content-length: 0

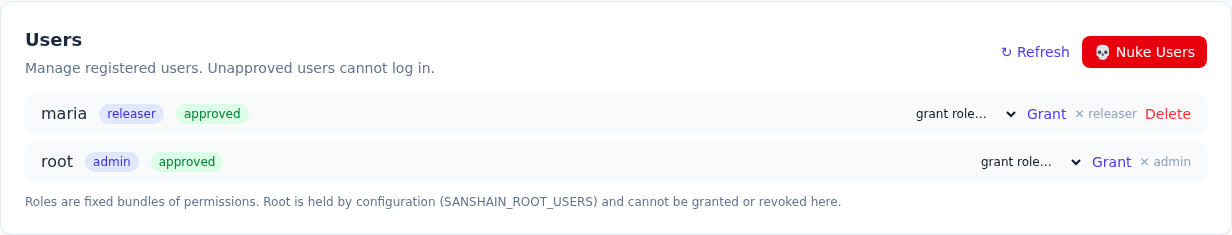

The user list, before approval

GET /admin/users HTTP/1.1
Authorization: Bearer <session token>

HTTP/1.1 200 OK
content-type: application/json
content-length: 118

[
  {
    "approved": false,
    "id": 2,
    "roles": [],
    "username": "maria"
  },
  {
    "approved": true,
    "id": 1,
    "roles": [
      "admin"
    ],
    "username": "root"
  }
]

Approve

POST /admin/users/2/approve HTTP/1.1
Authorization: Bearer <session token>

HTTP/1.1 200 OK
content-length: 0

Grant the role

POST /admin/users/2/roles HTTP/1.1
Authorization: Bearer <session token>
Content-Type: application/json

{
  "role": "releaser"
}

HTTP/1.1 201 Created
content-length: 0

Make her a maintainer of payments

POST /admin/producers/payments/maintainers HTTP/1.1
Authorization: Bearer <session token>
Content-Type: application/json

{
  "user_id": 2
}

HTTP/1.1 201 Created
content-length: 0

The effect: what maria's session may do

GET /auth/me HTTP/1.1
Authorization: Bearer <maria's session token>

HTTP/1.1 200 OK
content-type: application/json
content-length: 134

{
  "approved": true,
  "id": 2,
  "is_root": false,
  "maintains": [
    "payments"
  ],
  "permissions": [
    "release_ga"
  ],
  "roles": [
    "releaser"
  ],
  "username": "maria"
}

What to notice

• A role is a fixed bundle of permissions: releaser is exactly release_ga. Nothing else of the admin page opens for maria.
• maintains: ["payments"] is the scoped permission: the Producer's routes admit her, every other Producer's refuse her.
• Granting admin or releaser needs an administrator; manage_roles alone grants the other roles.

Go deeper

Roles and permissions: roles · Roles and permissions: maintainers · Getting started: approving users · POST /admin/users/{id}/roles · POST /admin/producers/{name}/maintainers

5. The webhook allow-list#

A fresh install sends nothing: hooks may only point at hosts the administrator approved. The operator allows Slack and, with the http:// prefix, a plain-HTTP receiver inside the cluster. The recording's receiver was a small local server; the text shows it as receiver.sanshain.svc, the screenshots show its real address, http://127.0.0.1:18080.

POST /admin/settings/webhook-allowed-hosts HTTP/1.1
Authorization: Bearer <session token>
Content-Type: application/json

{
  "hosts": [
    "hooks.slack.com",
    "http://receiver.sanshain.svc"
  ]
}

HTTP/1.1 200 OK
content-type: application/json
content-length: 48

{
  "hosts": [
    "hooks.slack.com",
    "http://receiver.sanshain.svc"
  ]
}

What to notice

• A pattern is a host name with * and ?; ports are not matched; the list comes back trimmed and lower-cased.
• The list binds maintainers. A hook registered by an administrator is exempt from it, for good, and the listing marks it so.
• It is checked again at every delivery: removing a host stops deliveries to it.

Go deeper

Webhooks: the allow-list · POST /admin/settings/webhook-allowed-hosts

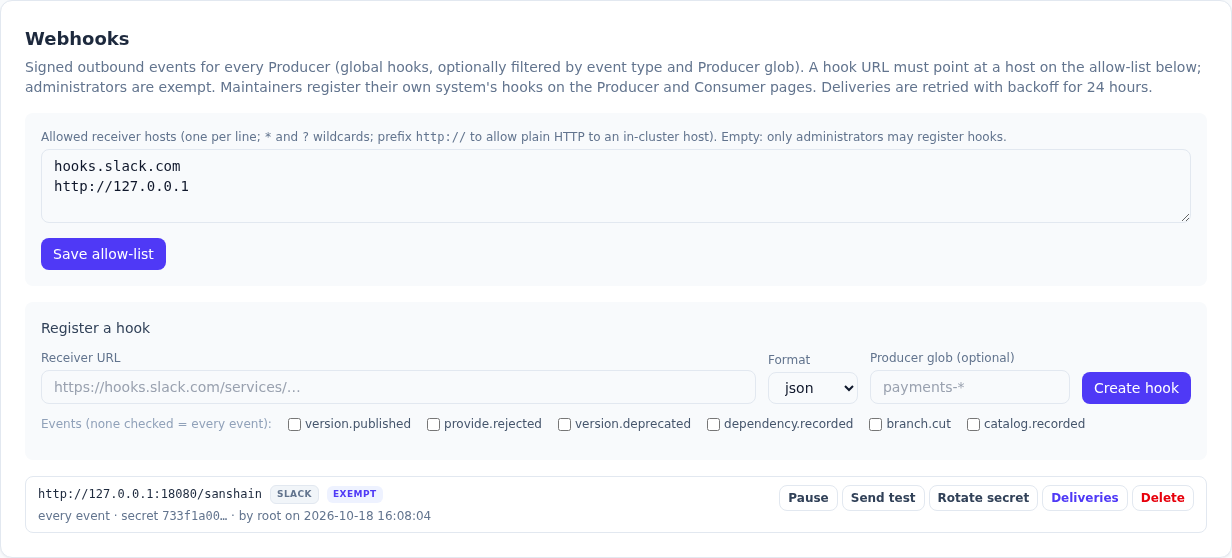

6. A hook, a test delivery, and the signature checked#

First the allow-list at work: maria, a maintainer of payments, tries to register a hook for it at a host nobody allowed. Then root registers a global hook in Slack format at the receiver; because root holds manage_settings the hook is marked allow_list_exempt, whatever the list says. The operator sends a test event; the worker delivers it within its interval; the receiver verifies the signature with the secret it was given once.

A maintainer's hook at a host that is not allowed

POST /admin/producers/payments/webhooks HTTP/1.1
Authorization: Bearer <maria's session token>
Content-Type: application/json

{
  "url": "https://example.com/sanshain",
  "format": "json"
}

HTTP/1.1 403 Forbidden
content-type: application/json
content-length: 154

{
  "error": "the host 'example.com' is not in the webhook allow-list — ask an administrator to allow it, or use one of: hooks.slack.com, http://receiver.sanshain.svc"
}

Register, as root

POST /admin/webhooks HTTP/1.1
Authorization: Bearer <session token>
Content-Type: application/json

{
  "url": "http://receiver.sanshain.svc/sanshain",
  "format": "slack"
}

HTTP/1.1 201 Created
content-type: application/json
content-length: 344

{
  "webhook": {
    "id": 1,
    "scope": {
      "kind": "global"
    },
    "url": "http://receiver.sanshain.svc/sanshain",
    "format": "slack",
    "event_types": [],
    "producer_glob": null,
    "secret_hint": "733f1a00",
    "paused": false,
    "allow_list_exempt": true,
    "created_by": "root",
    "created_at": "2026-10-18T16:08:04Z"
  },
  "secret": "whsec_…"
}

Send a test event

POST /admin/webhooks/1/test HTTP/1.1
Authorization: Bearer <session token>

HTTP/1.1 202 Accepted
content-type: application/json
content-length: 51

{
  "event_id": "236134cc-4cfb-474c-8ae9-d98fc9623024"
}

What the receiver got

POST /sanshain HTTP/1.1
Content-Type: application/json
Sanshain-Event: webhook.test
X-Sanshain-Delivery: 1
Sanshain-Signature: t=1792339684,v1=8f44fc22dafc56fcbf840795d318e3f188019728c64d31b7a9df5e1ca73b9e08
User-Agent: Sanshain/2.6.1

{
  "text": "*webhook.test* — Test event from Sanshain for hook 1: This is a test event from Sanshain. If you can read this, the receiver, the signature secret and the allow-list are all in order. <https://sanshain.corp/admin.html|Open in Sanshain>"
}

HTTP/1.1 200 OK

The receiver's check

# The receiver's check, with the secret shown once at creation
$ python3 verify.py delivery.json whsec_…
signature header: t=1792339684,v1=8f44fc22dafc56fcbf840795d318e3f188019728c64d31b7a9df5e1ca73b9e08
secret from the create answer: whsec_…
HMAC-SHA256 of '<t>.<raw body>': 8f44fc22dafc56fcbf840795d318e3f188019728c64d31b7a9df5e1ca73b9e08
valid: True

The delivery log

GET /admin/webhooks/1/deliveries?limit=5 HTTP/1.1
Authorization: Bearer <session token>

HTTP/1.1 200 OK
content-type: application/json
content-length: 351

[
  {
    "id": 1,
    "hook_id": 1,
    "event_id": "236134cc-4cfb-474c-8ae9-d98fc9623024",
    "event_type": "webhook.test",
    "occurred_at": "2026-10-18T16:08:04Z",
    "status": "delivered",
    "attempts": 1,
    "next_attempt_at": "2026-10-18T16:17:24Z",
    "last_response_code": 200,
    "last_error": null,
    "delivered_at": "2026-10-18T16:08:04Z",
    "redelivered_at": null,
    "updated_at": "2026-10-18T16:08:04Z"
  }
]

What to notice

• The 403 names the allowed hosts; a maintainer's hook at receiver.sanshain.svc or hooks.slack.com would have gone through. An administrator's hook is exempt, so exempt on the badge means "registered by someone the list does not bind".
• The secret (whsec_…) is in the registration answer and nowhere else afterwards; the listing shows secret_hint.
• Three headers accompany every delivery: Sanshain-Event, X-Sanshain-Delivery and Sanshain-Signature, t=…,v1=HMAC-SHA256("t.body").
• The Slack format is a ready-made message; the link in it uses PUBLIC_BASE_URL.
• status: delivered after one attempt; a failed one would retry on the backoff schedule for 24 hours and can be redelivered by hand.

Go deeper

Webhooks: hooks in three scopes · Webhooks: verifying the signature · Webhooks: retries and redelivery · POST /admin/webhooks · POST /admin/webhooks/{id}/test · GET /admin/webhooks/{id}/deliveries

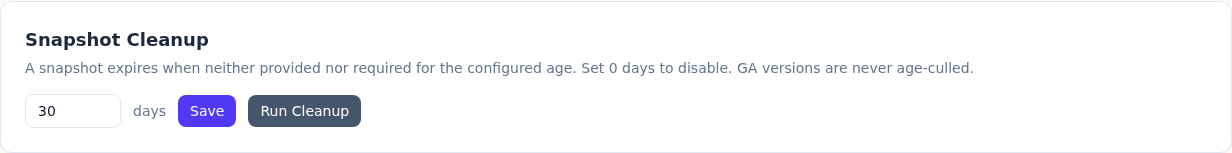

7. Retention, and a cleanup run#

Snapshots that nobody provides or requires any more should disappear. The operator sets the age and runs the cleanup once by hand to see what it does; from then on the scheduled pass does it.

Set the age

POST /admin/settings/snapshot-max-age HTTP/1.1
Authorization: Bearer <session token>
Content-Type: application/json

{
  "days": 30
}

HTTP/1.1 200 OK
content-length: 0

Run the cleanup now

POST /admin/cleanup/snapshots HTTP/1.1
Authorization: Bearer <session token>
Content-Type: application/json

{}

HTTP/1.1 200 OK
content-type: application/json
content-length: 13

{
  "deleted": 0
}

What to notice

• deleted: 0: this instance is minutes old and every snapshot was promoted; the pass only removes snapshots unused for the configured days.
• GA versions are never age-culled; 0 days switches the cleanup off.
• Both calls are audit entries (step 9).

Go deeper

Administration: retention and cleanup · Glossary: snapshot expiry · POST /admin/settings/snapshot-max-age · POST /admin/cleanup/snapshots

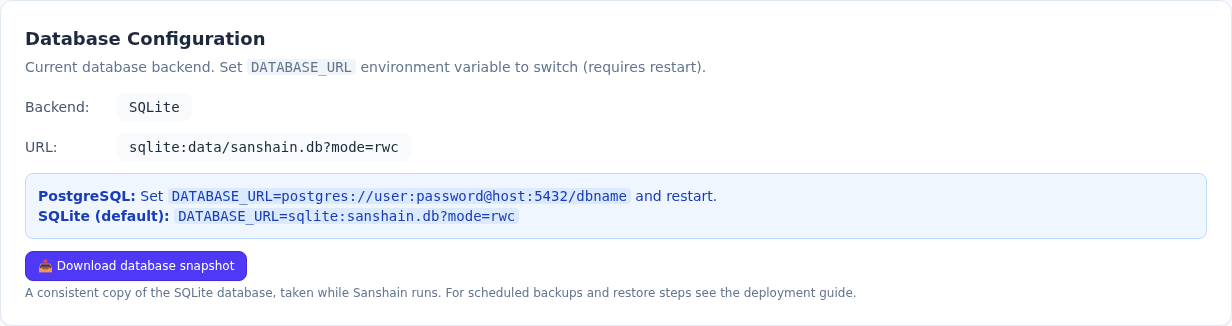

8. The snapshot the CronJob fetches, and the restore#

On SQLite the backup is one download, made by the engine (VACUUM INTO) so it is consistent while the service runs. This is the call the Helm CronJob makes with a full API token of an administrator. The restore below is the documented procedure, written out for this snapshot; it was not performed on a cluster.

The download

GET /admin/backup/sqlite HTTP/1.1
Authorization: Bearer san_…

HTTP/1.1 200 OK
content-type: application/vnd.sqlite3
content-length: 385024
content-disposition: attachment; filename="sanshain-2.6.1-20261018T160805Z.db"

<385024 bytes of SQLite database, saved as sanshain-backup.db>

The restore, as documented

# Not recorded against a cluster: the restore procedure from Backup and restore,
# with the snapshot the CronJob fetched above (sanshain-2.6.1-20261018T160805Z.db).
$ kubectl scale deployment sanshain --replicas=0
deployment.apps/sanshain scaled
$ kubectl run restore --rm -it --image=busybox --overrides='{"spec":{"volumes":[{"name":"data","persistentVolumeClaim":{"claimName":"sanshain-data"}},{"name":"backup","persistentVolumeClaim":{"claimName":"sanshain-backup"}}],"containers":[{"name":"restore","image":"busybox","command":["sh"],"stdin":true,"tty":true,"volumeMounts":[{"name":"data","mountPath":"/data"},{"name":"backup","mountPath":"/backup"}]}]}}' -- sh
/ # cp /backup/sanshain-2.6.1-20261018T160805Z.db /data/sanshain.db
/ # rm -f /data/sanshain.db-wal /data/sanshain.db-shm
/ # exit
$ kubectl scale deployment sanshain --replicas=1
deployment.apps/sanshain scaled
$ kubectl logs deployment/sanshain | grep -i migrations
INFO sanshain_service::infrastructure::sqlite_repository: Running SQLite migrations...

What to notice

• The file name carries the instance version and a UTC stamp; the migration runner brings an older snapshot's schema up on the next start, a newer one does not restore.
• This is the only administrative route that takes an API token (the job's one credential); a read_only token is refused.
• On PostgreSQL the route answers 409 and the chart renders a pg_dump CronJob instead.

Go deeper

Backup: SQLite · Backup: restore · Backup: PostgreSQL · GET /admin/backup/sqlite

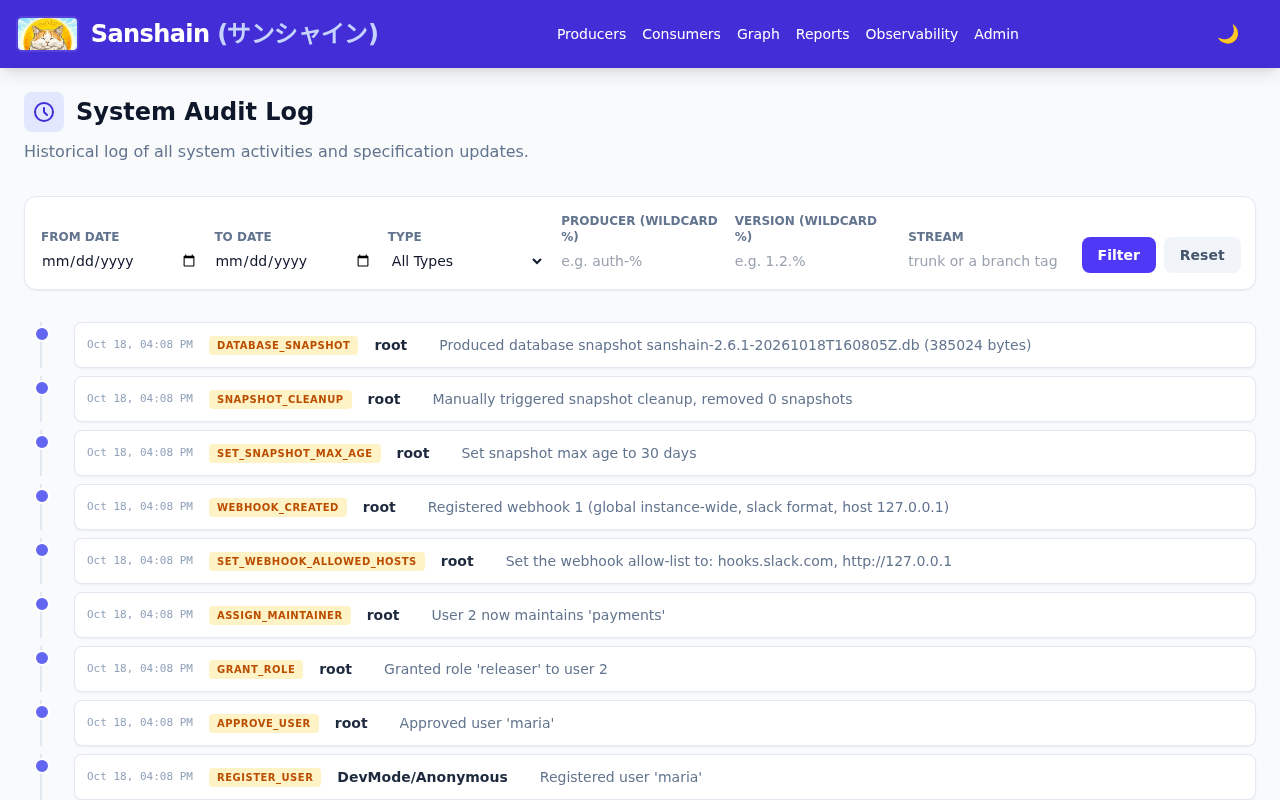

9. The audit log after all of this#

Everything the operator did landed in the audit log with the acting user. The observability panel's call lists the newest entries; the audit page shows the same with filters and diffs.

GET /admin/observability/audit-logs?limit=12 HTTP/1.1
Authorization: Bearer <session token>

HTTP/1.1 200 OK
content-type: application/json
content-length: 2921

[
  {
    "id": 25,
    "timestamp": "2026-10-18T16:08:05.620855031+00:00",
    "username": "root",
    "action": "DATABASE_SNAPSHOT",
    "details": "Produced database snapshot sanshain-2.6.1-20261018T160805Z.db (385024 bytes)",
    "service": null,
    "version": null,
    "action_type": "ADMIN",
    "diff": null,
    "stream": null
  },
  {
    "id": 24,
    "timestamp": "2026-10-18T16:08:05.579860513+00:00",
    "username": "root",
    "action": "SNAPSHOT_CLEANUP",
    "details": "Manually triggered snapshot cleanup, removed 0 snapshots",
    "service": null,
    "version": null,
    "action_type": "ADMIN",
    "diff": null,
    "stream": null
  },
  {
    "id": 23,
    "timestamp": "2026-10-18T16:08:05.510968713+00:00",
    "username": "root",
    "action": "SET_SNAPSHOT_MAX_AGE",
    "details": "Set snapshot max age to 30 days",
    "service": null,
    "version": null,
    "action_type": "ADMIN",
    "diff": null,
    "stream": null
  },
  {
    "id": 22,
    "timestamp": "2026-10-18T16:08:04.314122960+00:00",
    "username": "root",
    "action": "WEBHOOK_CREATED",
    "details": "Registered webhook 1 (global instance-wide, slack format, host receiver.sanshain.svc)",
    "service": null,
    "version": null,
    "action_type": "ADMIN",
    "diff": null,
    "stream": null
  },
  {
    "id": 21,
    "timestamp": "2026-10-18T16:08:04.228415162+00:00",
    "username": "root",
    "action": "SET_WEBHOOK_ALLOWED_HOSTS",
    "details": "Set the webhook allow-list to: hooks.slack.com, http://receiver.sanshain.svc",
    "service": null,
    "version": null,
    "action_type": "ADMIN",
    "diff": null,
    "stream": null
  },
  {
    "id": 20,
    "timestamp": "2026-10-18T16:08:04.100843100+00:00",
    "username": "root",
    "action": "ASSIGN_MAINTAINER",
    "details": "User 2 now maintains 'payments'",
    "service": null,
    "version": null,
    "action_type": "ADMIN",
    "diff": null,
    "stream": null
  },
  {
    "id": 19,
    "timestamp": "2026-10-18T16:08:04.065233157+00:00",
    "username": "root",
    "action": "GRANT_ROLE",
    "details": "Granted role 'releaser' to user 2",
    "service": null,
    "version": null,
    "action_type": "ADMIN",
    "diff": null,
    "stream": null
  },
  {
    "id": 18,
    "timestamp": "2026-10-18T16:08:04.021717238+00:00",
    "username": "root",
    "action": "APPROVE_USER",
    "details": "Approved user 'maria'",
    "service": null,
    "version": null,
    "action_type": "ADMIN",
    "diff": null,
    "stream": null
  },
  {
    "id": 17,
    "timestamp": "2026-10-18T16:08:03.947200140+00:00",
    "username": "DevMode/Anonymous",
    "action": "REGISTER_USER",
    "details": "Registered user 'maria'",
    "service": null,
    "version": null,
    "action_type": "ADMIN",
    "diff": null,
    "stream": null
  },
  {
    "id": 16,
    "timestamp": "2026-10-18T16:08:03.877597934+00:00",
    "username": "root",
    "action": "UPDATE_SETTINGS",
    "details": "Updated auth mode to 'local' and LDAP configurations",
    "service": null,
    "version": null,
    "action_type": "ADMIN",
    "diff": null,
    "stream": null
  },
  {
    "id": 15,
    "timestamp": "2026-10-18T16:08:03.803321289+00:00",
    "username": "root",
    "action": "UPDATE_SETTINGS",
    "details": "Updated auth mode to 'oidc' and LDAP configurations",
    "service": null,
    "version": null,
    "action_type": "ADMIN",
    "diff": null,
    "stream": null
  },
  {
    "id": 14,
    "timestamp": "2026-10-18T16:08:03.681745512+00:00",
    "username": "root",
    "action": "CHANGE_PASSWORD",
    "details": "Successfully changed user password",
    "service": null,
    "version": null,
    "action_type": "ADMIN",
    "diff": null,
    "stream": null
  }
]

What to notice

• Administrative entries have action_type: ADMIN and a details line meant to be read as it is; spec updates carry service, version, stream and a diff.
• A self-registration has no signed-in actor, so it is recorded under DevMode/Anonymous; the approval names the administrator.
• Reading it needs view_audit (admin and viewer roles); /admin/observability/audit-logs/export gives the whole log.

Go deeper

Administration: the audit log · The web UI: the audit timeline · GET /admin/observability/audit-logs

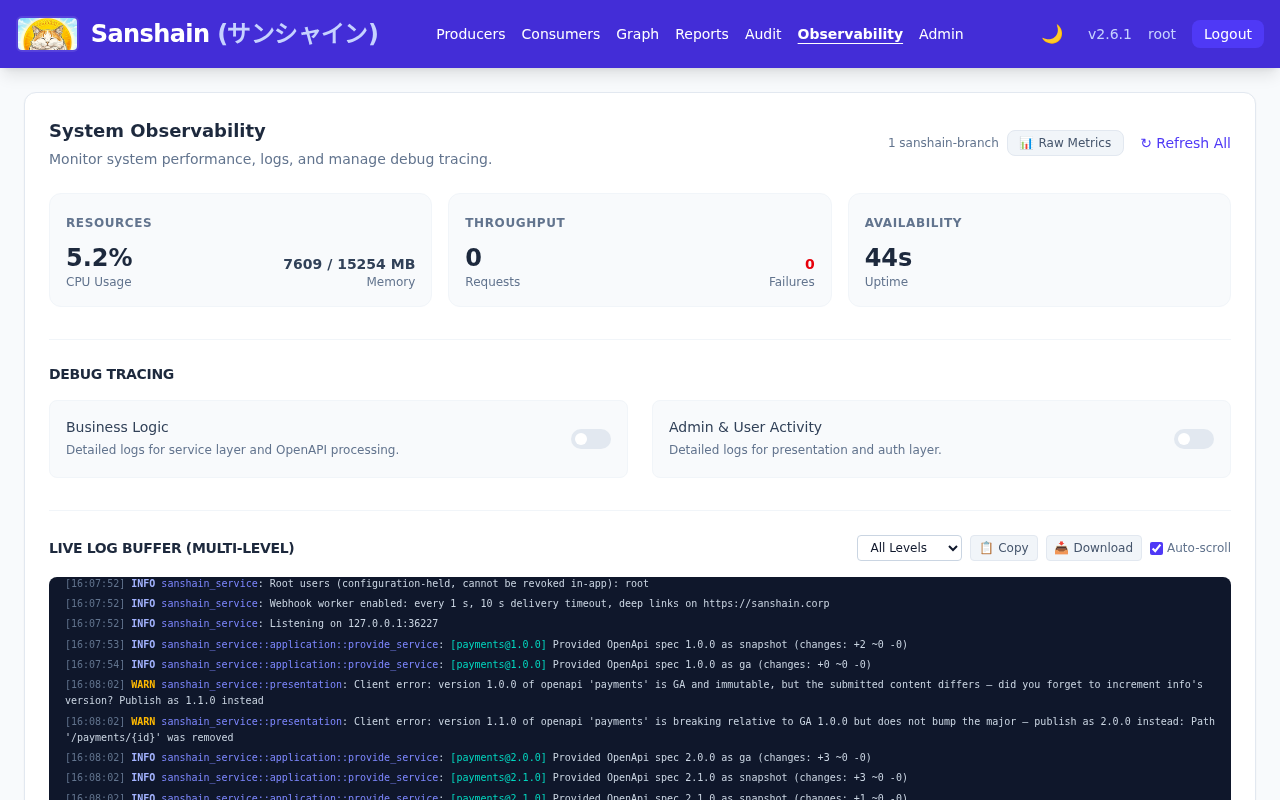

10. The observability page and /metrics#

The observability page shows resources, throughput, the live log buffer and the debug switches; Prometheus scrapes /metrics. The excerpt below is every sanshain_* line after both stories: two rejected provides, one catalog push, one branch, one delivery, one MCP call.

$ curl -s https://sanshain.corp/metrics | grep '^sanshain_'
sanshain_branches 1
sanshain_catalog_pushes_total 1
sanshain_mcp_result_bytes_total{tool="describe_service"} 1682
sanshain_mcp_tool_calls_total{tool="describe_service",outcome="ok"} 1
sanshain_version_rejected_total{reason="breaking_without_major",producer="payments"} 1
sanshain_version_rejected_total{reason="immutable_ga",producer="payments"} 1
sanshain_webhook_deliveries_total{outcome="delivered"} 1
sanshain_webhook_outbox_pending 0

What to notice

• sanshain_version_rejected_total by reason and Producer is the first thing to alert on: a pipeline keeps failing somewhere.
• sanshain_webhook_outbox_pending climbing while sanshain_webhook_deliveries_total{outcome="failed"} climbs means a receiver is down or left the allow-list.
• The HTTP metrics of the Axum layer are there too; the chapter lists every family.

Go deeper

Observability: Prometheus metrics · Observability: the page · Observability: logs
